Description

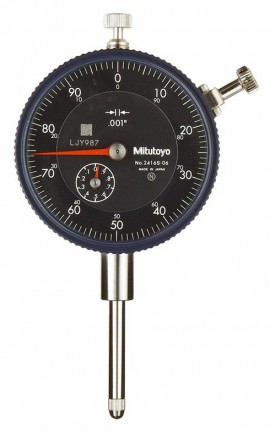

Mitutoyo 2416A Standard Type Dial Indicator, 0 to 1″, lug back

Performs with excellent accuracy and reliability, this indicator is ideal for a wide range of applications. Features secured adhesion between the frame and crystal, along with an O-ring that protects it against water and oil permeation via the front face.

Features

• A revolutionary offset spindle bushing design provides trouble-free stem clamping and a longer clamping range
• Unique shock-proof mechanism protects against shock from sudden spindle retraction
• Includes limit markers for quick, easy tolerance judgments
• Rack gear is machine ground for tighter fit, increased accuracy
• Greater rigidity in the bearing plate reduces retracing error by up to 20%
• 4-Screw mounting increases impact resistance for better, longer accuracy
• No through screw hole on the frame provides better dust resistance
• Contact point is carbide tipped for lasting accuracy, durability
• Crystal is glare-free with a scratch-resistant coating
• Manufactured to meet ANSI/AGD standards

Applications

• General manufacturing
• Aerospace
• Automotive
• Defense
• Electronics
• Energy
• Plastics and rubber

Specifications
