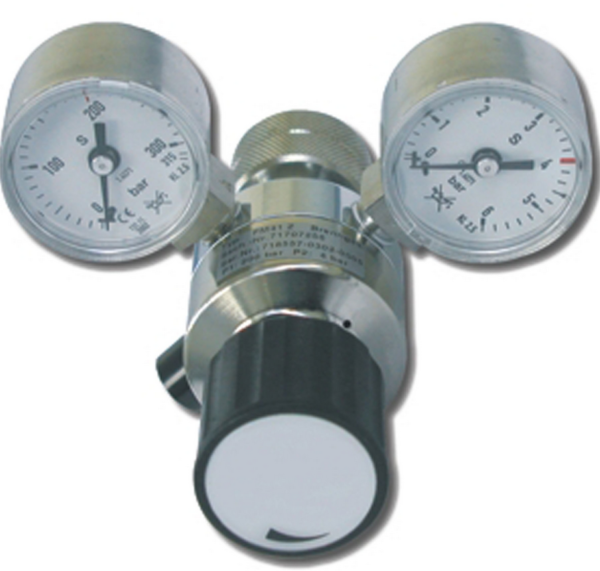

Spectrocem Cylinder Pressure Regulator FE45
RM 0.00
Description
Cylinder pressure regulator FE45
Features:
- Single-stage cylinder pressure regulator with compensated main valve for improved performance
- Simple and safe gas withdrawal from gas cylinders, for corrosive gases and gas mixtures up to quality 6.0
- Compensated main valve for significantly improved outlet pressure accuracy similar to a dual-stage regulator
- Compact design, light weight
- New laboratory-style design
- Ergonomically designed
- Suitable for ECD-applications
- High control accuracy
- Integrated relief valve
- Hastelloy-diaphragm
- Minimised gas-wetted surface
- Manual cylinder connection (for non-metal-to-metal sealing cylinder connections)
Technical data:
- Inlet pressure P₁: max. 230 bar
- Outlet pressure P₂: max. 1,5 / 4 / 10 bar
- Body: stainless steel 316L
Diaphragm: Hastelloy C276
Valve seat: PCTFE - Cylinder connection: acc. to international standards and gas type
- Outlet connection: 1/8”-NPT female
- Leak rate: 1 x 10⁻⁸ mbar l/s He
- Pressure gauges: safety pressure gauge , ISO5171/cl1.6/NG40
- Weight: 520 g
