Spectrocem Cylinder Pressure Regulator FE121
RM 0.00
Description

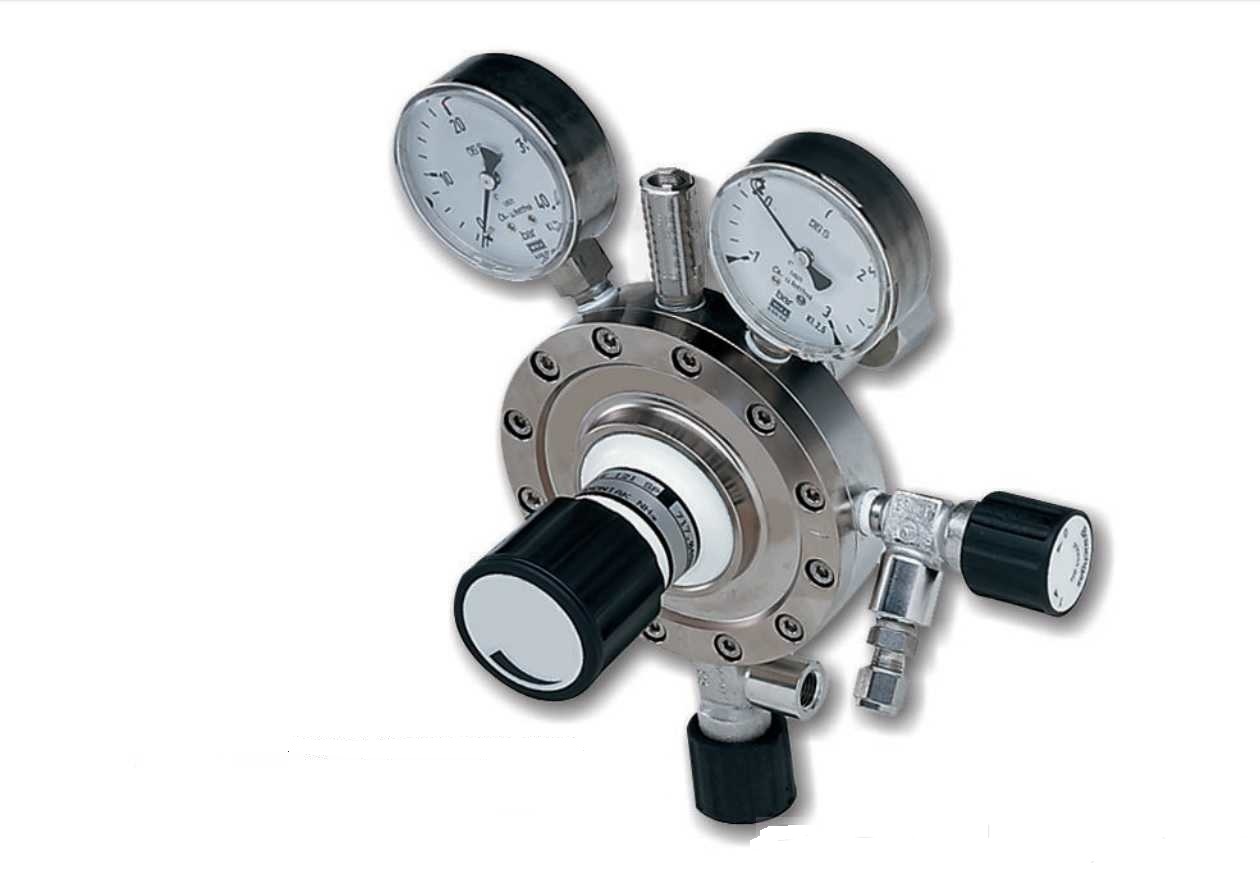

Cylinder pressure regulator FE121
Features:
- Single-stage cylinder pressure regulator
- Simple and safe gas withdrawal from gas cylinders, for corrosive gases and gas mixtures up to quality 6.0 up to 25 bar vapour pressure
- For corrosive gases and gas mixtures with >1% corrosive components we recommend the use of a purging device (FE 121 SP)
- New laboratory-style design
- Ergonomically designed
- Filter at the regulator inlet
- High control accuracy due to large diaphragm
- Integrated relief valve
- Available with purge device FE 121 SP
- Simple outlet pressure limitation by handwheel
- Powder-coated bonnet
Technical data:
- Inlet pressure P₁: Max. 25 bar
- Outlet pressure P₂: Max. 0,1 – 1,5 bar
- Flow rate Q: Max. 9 m³/h
- Body: stainless steel 316L
Diaphragm: Hastelloy C276
Valve seat: PCTFE
Inlet gasket: PCTFE - Cylinder connector: acc. to international standards and gas type
- Outlet connector: 1/4”-18 NPT female
- Relief valve connector: 1/8”-27 NPT female
- Leak rate: 1 x 10⁻⁸ mbar l/s He
- Weight: 2,1 kg
