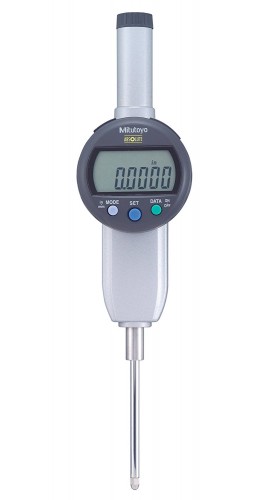

Mitutoyo 543-737B-02 Absolute Digital Indicator ID-C, 0-2″ (0-50mm), SPC Output

The Mitutoyo 543-496B IDC Absolute Digimatic Indicator has a Flat Back, 3/8″ Stem diameter and 2″/50mm Measuring Range with a .0005″/0.01mm Resolution and a Measuring Force of 2.3N or Less.

Features

• GO/±NG judgment can be performed by setting upper and lower tolerance limits. The judgment result (GO/±NG) can be displayed in full-size characters
• The positive/negative count resulting from the spindle’s up/down movement can be toggled
• Internal calculations using the simple formula of [F(x)=Ax)] are available
• Employing the ABSOLUTE linear encoder, the ID-C always displays the spindle “Absolute Position” from the origin at power-on. Also unlimited response speed eliminates over-speed errors
• The ID-C indicator face can be rotated 330° to an appropriate angle for easy reading
