Mitutoyo 2514A Dial Indicator with Lug
RM 0.00
Description

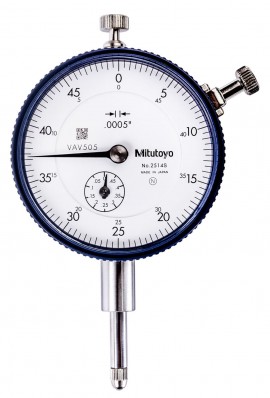

Mitutoyo 2514A Series 2 Standard Dial Indicator with Lug, 0.5″, SAE
View inch readings on the Mitutoyo 2514S Series 2 Standard Dial Indicator with Lug. The dial is clear and easy to read, designed with numbers 0 to 50. The stem measures 0.38″ (9.5 mm) to accommodate your setup.
Features
- 0.38″ (9.5 mm) stem diameter with 4 to 48 UNF thread
- Dial face shows the readings nice and clear
- Marked with 0.005″ graduations
- Force: 1.8 N or less
- Lug included
Specifications
| Supported Measurement Unit(s) | in |
| Measurement Range | 0.5″ per 0.05″ revolution |
| Accuracy | 0.0005″ first 2.5 revolutions; 0.0015″ overall |
| Dial Reading | 0 to 50 |
| Dial Color | White/black |
| Graduation Measurements | Inches |
