Description

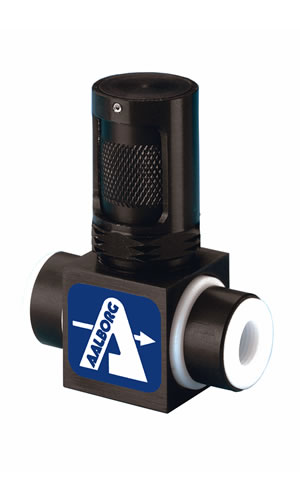

VT PTFE precision needle valves

MVT™ Metering valves are constructed of PTFE and PEEK materials. Non-fluid contacting external parts are made of anodized aluminum. Valves are offered in three conveniently overlapping flow ranges. Safety handle prevents over tightening and facilitates fine metered regulation. MVT™ valves are useful in regulating the flow of corrosive gases and liquids. They may be used in pressure or non-critical vacuum service and serve as bubble tight shutoff valves.

Design Features

• fluids in contact with PTFE only
• structurally rigid metal shell.
• one PTFE o-ring
• simplicity – only seven components.
• up to 55 SLPM (air) or 2.8 LPM (water)

Specifications:

• MAXIMUM OPERATING PRESSURE 75 psig (517 kPa)
• MAXIMUM OPERATING TEMPERATURE 150°F (65°C)
• FLUID CONTACTING MATERIALS PTFE (body and o-ring); PEEK (valve spindle)
• NON-FLUID CONTACTING MATERIALS shell – aluminum (black anodized) or 316 stainless steel; bushing plated brass or 316 stainless steel; adjusting knob – phenolic.
• ORIFICE SIZE 0.125 inch diameter (3.175 mm)
