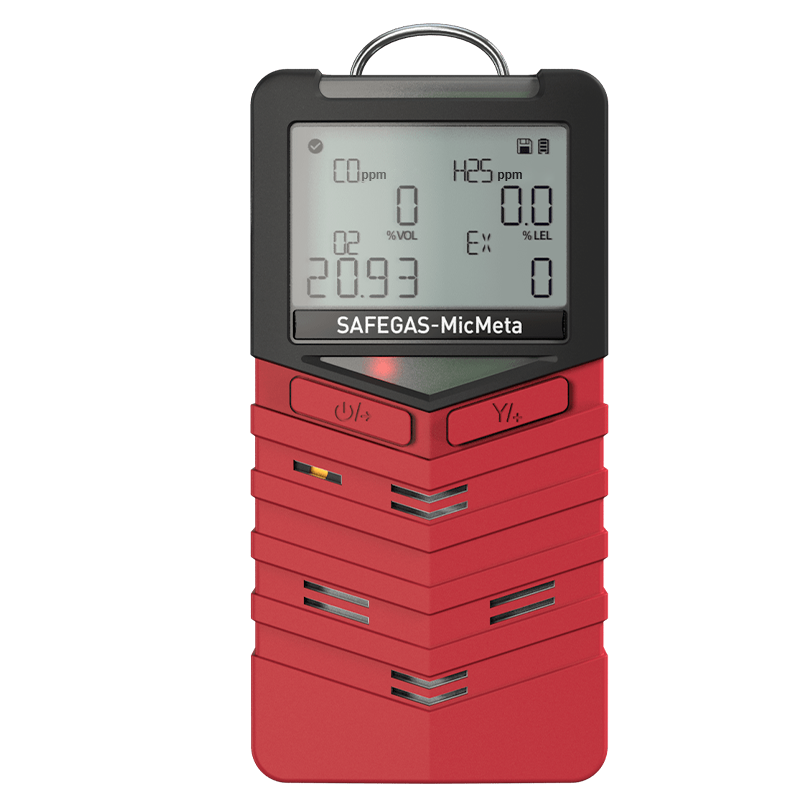

SAFEGAS Micmeta Multi 2 in 1 Gas Detector
RM 0.00
Description
Micmeta Multi 2 in 1 Gas Detector
Product Model: Micmeta
The MicMeta series is compact, light weight, small size, easy to use, no expertise required gas detectors. It’s IECEx, ATEX, CNEX certificated and the explosion proof grade is Ex ia I Ma, Ex ia IIC T4 Ga which is applicable to the explosive gas mixture zone 0, zone 1, and zone 2 of the factory with grades ⅡA , ⅡB , and ⅡC and temperature group T1~T4 as well as coal mines. Moreover, it’s the only multi-gas detector with a rating of IP68 for unmatched water protection. So customer can be confident it will stand up to challenging conditions like harsh weather.
MicMeta series can continuously detect up to 4 gases and the standard type is carbon monoxide, hydrogen sulfide , oxygen and combustible gases.
Specifications:
| Sampling method | Diffusion |
| Gas type | To be specified |
| Measure range | To be specified |
| Resolution | To be specified |
| Response time | ≤60S (T90) |
| Precision | ≤±5%FS or ±10% (depends on the specific sensor |
| Language | Chinese/English |
| Automatically test and calibrate after power-on | Including auto-test, calibration, auto-zero, maximum value (MAX), minimum value (MIN), STEL, TWA value |
| Unit | PPM and mg/m³ can be switched and displayed by one key, and the concentration value is automatically converted by the system |
| Disaply | Segment code LCD display |
| Calibration platform | Modification, function testing and calibration operations can be performed on DKM-MicMeta docking station (optional) |
| Data record | 1000 sets data records and 100 sets events records |
| Alarm | 95dB buzzer (@30cm), vibration alarm and flashing red bars and alarm status indication on the screen, alarm latched; diagnostic alarm and battery under voltage alarm, man down alarm, alarm set points for all sensors are user adjustable. |
| Battery | 3.7V rechargeable lithium battery, battery capacity 2300mA |
| Working hours | Standby time 18h, charging time <6h |
| Wireless transmission | Bluetooth transmission function (optional), Lora transmission function (optional) |
| Explosion-proof grade | IECEX: Ex ia IIC T4 Ga, Ex ia I Ma, ATEX II 1G Ex ia IIC T4 Ga, Ex ia I MaCNEX：Ex ia IIC T4 Ga |
| Certification(EU regulations) | 2004/108/EC（EMC） 94/9/EC（ATEX）CE |
| Protection grade | IP66/IP68 |
| Working temperature | -20°C~55°C |
| Humidity | 0-95%RH (non-condensing) |
| Environmental pressure | 86～106Kpa |
| Size | 113*60*32mm (length * width * height) |
| Weight | 200g (with lithium battery) |
Gas and ranges:
| Gas | Range | Other available range | Resolution |
| CO | 0-1000ppm | 0-100ppm, 0-500ppm, 0-2000ppm, 0-5000ppm, 0-10000ppm | 0.1ppm, 1ppm |
| H2S | 0-100ppm | 0-10ppm, 0-50ppm, 0-500ppm, 0-1000ppm, 0-10000ppm | 0.01, 0.1, 1ppm |
| O2 | 0-30%VOL | 0-5%VOL, 0-25%VOL, 0-50%VOL, 0-100%VOL | 0.01%VOL |
| EX / CH4 | 0-100%LEL | 0-100%VOL | 1%LEL, 0.01%VOL |
| N2 | 0-100%VOL | 0.01%VOL | |
| NH3 | 0-100ppm | 0-50ppm, 0-500ppm, 0-1000ppm, 0-5000ppm | 0.01, 0.1, 1ppm |
| CL2 | 0-10ppm | 0-20ppm, 0-50ppm, 0-100ppm, 0-200ppm, 0-500ppm | 0.01. 0.1ppm |
| H2 | 0-1000ppm | 0-100%LEL, 0-2000ppm, 0-10000ppm, 0-40000ppm, 0-4%VOL | 1%LEL, 1ppm |
| CH2O | 0-10ppm | 0-50ppm, 0-100ppm, 0-500ppm, 0-1000ppm | 0.01, 0.1, 1ppm |
| O3 | 0-50ppm | 0-1ppm, 0-10ppm, 0-20ppm, 0-100ppm, 0-500ppm, 0-1000ppm | 0.01, 0.1, 1ppm |
| CO2 | 0-5000ppm | 0-2000ppm, 0-10000ppm, 0-20000ppm, 0-50000ppm, 0-5%VOL, 0-10%VOL, 0-50%VOL, 0-100%VOL | 1ppm, 0.01%vol |
| NO | 0-100ppm | 0-20ppm, 0-50ppm, 0-500ppm, 0-1000ppm, 0-4000ppm | 0.01, 0.1, 1ppm |
| NO2 | 0-20ppm | 0-50ppm, 0-100ppm, 0-500ppm, 0-1000ppm, 0-4000ppm | 0.01, 0.1, 1ppm |
| NOX | 0-20ppm | 0-50ppm, 0-100ppm, 0-500ppm, 0-1000ppm, 0-4000ppm | 0.01, 0.1, 1ppm |
| SO2 | 0-10ppm | 0-20ppm, 0-50ppm, 0-100ppm, 0-500ppm, 0-1000ppm, 0-2000ppm | 0.01, 0.1, 1ppm |
| ETO | 0-10ppm | 0-20ppm, 0-50ppm, 0-100ppm, 0-500ppm, 0-1000ppm | 0.01, 0.1, 1ppm |
| PH3 | 0-10ppm | 0-20ppm, 0-50ppm, 0-100ppm, 0-500ppm, 0-1000ppm, 0-5000ppm | 0.01, 0.1, 1ppm |
| HCL | 0-10ppm | 0-20ppm, 0-50ppm, 0-100ppm | 0.01ppm |
| HCN | 0-10ppm | 0-20ppm, 0-50ppm, 0-100ppm | 0.01ppm |
| COCL2 | 0-1ppm | 0.01ppm | |
| CLO2 | 0-10ppm | 0-20ppm, 0-50ppm, 0-100ppm | 0.01ppm |
| SiH4 | 0-10ppm | 0-50ppm | 0.01ppm |
| F2 | 0-10ppm | 0-1ppm | 0.01ppm |
| HF | 0-10ppm | 0.01ppm | |
| HBr | 0-10ppm | 0-50ppm, 0-100ppm | 0.01ppm |
| H2O2 | 0-100ppm | 0-500ppm, 0-1000ppm, 0-2000ppm | 0.01, 0.1, 1ppm |
| B2H6 | 0-5ppm | 0-10ppm | 0.01ppm |
| AsH3 | 0-1ppm | 0-10ppm, 0-50ppm | 0.01ppm |
| GeH4 | 0-1ppm | 0.01ppm | |
| N2H4 | 0-1ppm | 0.01ppm | |
| THT | 0-100ppm | 0-50mg/m3, 0-100mg/m3 | 0.01ppm, 0.01mg/m3 |
| Br2 | 0-5ppm | 0-10ppm, 0-50ppm | 0.01ppm |
| C2H2 | 0-100ppm | 0-2.3%VOL | 0.01ppm, 0.01%VOL |
| C2H4 | 0-10ppm | 0-50ppm, 0-100ppm, 0-500ppm, 0-1000ppm, 2.4%VOL | 0.01, 0.1, 1ppm, 0.01%VOL |
| CH3OH | 0-100ppm | 0-50ppm, 0-500ppm, 0-1000ppm | 0.01, 0.1, 1ppm |
| C2H5OH | 0-100ppm | 0-50ppm, 0-500ppm, 0-1000ppm | 0.01, 0.1, 1ppm |
| CH4S | 0-100ppm | 0.01ppm | |
| C8H8 | 0-10ppm | 0-50ppm, 0-100ppm, 0-1000ppm, 0-5000ppm, 0-10000ppm | 0.01, 0.1, 1ppm |
| C4H6 | 0-10ppm | 0-50ppm, 0-100ppm, 0-1000ppm, 0-5000ppm, 0-10000ppm | 0.01, 0.1, 1ppm |
| VOC/TVOC | 0-10ppm | 0-1ppm, 0-50ppm, 0-100ppm, 0-500ppm, 0-1000ppm, 0-5000ppm, 0-10000ppm | 0.001, 0.01, 0.1, 1ppm |
| CH3Br | 0-10ppm | 0-50ppm, 0-100ppm, 0-500ppm, 0-1000ppm, 0-5000ppm, 0-10000ppm | 0.001, 0.01, 0.1, 1ppm |
| C6H6 | 0-10ppm | 0-1ppm, 0-50ppm, 0-100ppm, 0-500ppm, 0-1000ppm, 0-5000ppm, 0-10000ppm | 0.001, 0.01, 0.1, 1ppm |
| C7H8 | 0-10ppm | 0-1ppm, 0-50ppm, 0-100ppm, 0-500ppm, 0-1000ppm, 0-5000ppm, 0-10000ppm | 0.001, 0.01, 0.1, 1ppm |
| C8H10 | 0-10ppm | 0-1ppm, 0-50ppm, 0-100ppm, 0-500ppm, 0-1000ppm, 0-5000ppm, 0-10000ppm | 0.001, 0.01, 0.1, 1ppm |
For other gases and the measure ranges that are not listed, please contact us for free quotes and information.
