Description

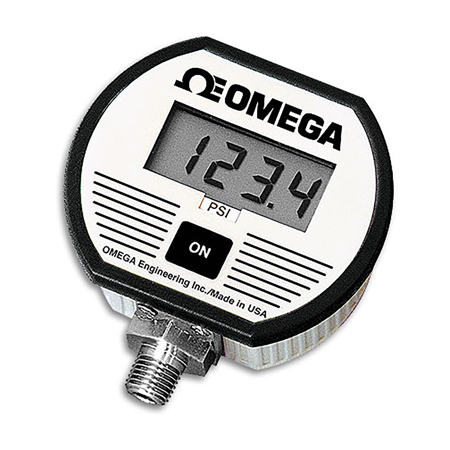

DPG1001 Series High Accuracy Digital Pressure Gauges with NIST Certification
The DPG1001 series is a versatile family of industrial pressure gauges. All DPG1001 models feature a large 13 mm H (1/2″) digital display in a rugged, splashproof extruded aluminum case.
A 1/4-18 NPT 316 stainless steel fitting is standard for the pressure connection. Media compatibility includes any liquids or gases compatible with 316 stainless steel.
The DPG1001 features a wide operating temperature range of -20 to 85°C (-4 to 185°F). Many different standard pressure ranges are available. The DPG1001 series also features ±0.10% accuracy, 2X overpressure and 4X burst specifications.
BATTERY POWERED MODELS
DPG1001B-15G : 0-15.00 psig battery powered digital pressure gauge (0.01 psi resolution)
DPG1001B-60G : 0-60.0 psig battery powered digital pressure gauge (0.1 psi resolution)
DPG1001B-100G : 0-100.0 psig battery powered digital pressure gauge (0.1 psi resolution)
DPG1001B-500G : 0-500 psig battery powered digital pressure gauge (1 psi resolution)
DPG1001B-1KG : 0-1000 psig battery powered digital pressure gauge (1 psi resolution)
DPG1001B-2KG : 0-2000 psig battery powered digital pressure gauge (1 psi resolution)
LOOP POWERED MODELS
DPG1001L-05G : 0-5.00 psig loop powered digital pressure gauge (0.01 psi resolution)
DPG1001L-15G : 0-15.00 psig loop powered digital pressure gauge (0.01 psi resolution)
DPG1001L-60G : 0-60.0 psig loop powered digital pressure gauge (0.1 psi resolution)
DPG1001L-100G : 0-100.0 psig loop powered digital pressure gauge (0.1 psi resolution)
DPG1001L-500G : 0-500 psig loop powered digital pressure gauge (1 psi resolution)
DPG1001L-1KG : 0-1000 psig loop powered digital pressure gauge (1 psi resolution)
AD/DC POWERED MODELS
DPG1001AD-05G : 0-5.00 psig ac/dc powered digital pressure gauge (0.01 psi resolution)
DPG1001AD-15G : 0-15.00 psig ac/dc powered digital pressure gauge (0.01 psi resolution)
DPG1001AD-60G : 0-60.0 psig ac/dc powered digital pressure gauge (0.1 psi resolution)
DPG1001AD-100G : 0-100.0 psig ac/dc powered digital pressure gauge (0.1 psi resolution)
DPG1001AD-500G : 0-500 psig ac/dc powered digital pressure gauge (1 psi resolution)
DPG1001AD-1KG : 0-1000 psig ac/dc powered digital pressure gauge (1 psi resolution)
