Mitutoyo 506-208 Vernier Lightweight Height Gauge
RM 0.00
Description

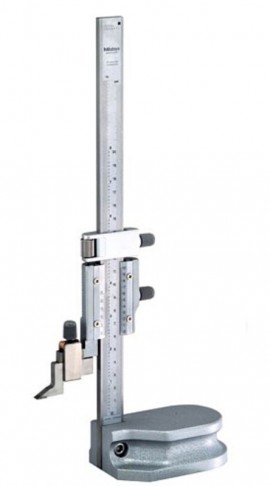

Mitutoyo 506-208 Series 506 Vernier Lightweight Height Gauge, 0 to 8″
Verify the dimensions of small materials with the Mitutoyo 506-208 Series 506 Vernier Lightweight Height Gauge. The beam and slider are crafted from stainless steel, and the gauge boasts a chrome, glare-free finish. Plus, it comes with a carbide-tipped scriber and a scriber clamp, so you’ll have everything you need to start measuring.
Features
- Ideal for scribing from a vertical base or for use with small parts
- Scale is chrome finished for easy, glare-free reading
- Stainless-steel beam and slider withstand repeated use
- Lightweight build makes it easy to transport as needed
- Comes with carbide-tipped scriber and clamp
- Compatible with select Mitutoyo accessories (sold separately) for increased functionality
- Adjustable main scale
- 0.001″ (0.02 mm) graduation
Applications
- Precision engineering and manufacturing
- Quality control
- Tool and die making
- Laboratory measurements
- Metalworking and machining
Specifications
| Attribute | Details |
| Digital/Analog | Analog |
| Inch-Metric | Inch/Metric |
| Delivered | Including carbide tipped scriber, scriber clamp |
| Range | 0 to 8″ (0 to 200 mm) |
| Graduation | 0.001″ (0.02 mm) |
| Max. Permissible Error E MPE | ±0.001″ (±0.03 mm) |
| Max. Permissible Error J MPE | ±0.001″ (±0.03 mm) |
| Scale adjustment | 0.59″ (15 mm): 11.81″ (300 mm), 17.72″ (450 mm), 23.62″ (600 mm) range 0.9″ (25 mm): 39.37″ (1000 mm) range |
| Delivered | Including scriber and scriber clamp |
| Weight | 3.1 lbs (1.4 kg) |
