Hydrotechnik WLB-DPG Watchlog Bluetooth Digital Pressure Gauge
RM 0.00
Description

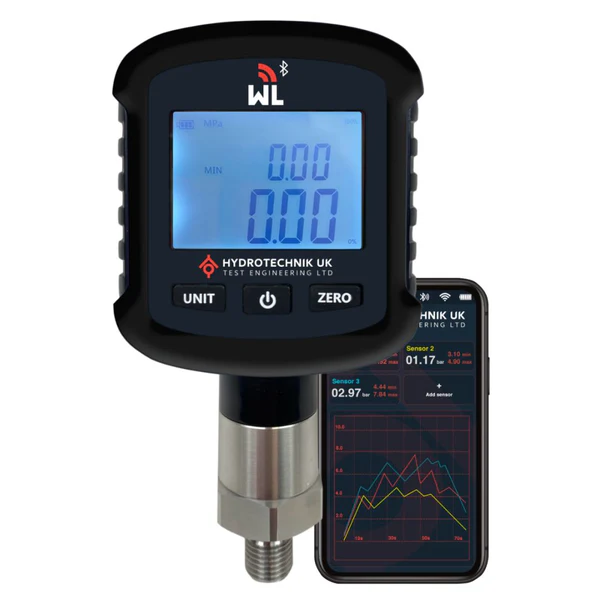

Watchlog Bluetooth Digital Pressure Gauge
This WLB-DPG series Watchlog Bluetooth Digital Pressure Gauge from Hydrotechnik incorporates a high-precision pressure sensor with accurate, large-size LCD display, showing measured pressure in real-time and transmitting readings up to 100ms via Bluetooth.
The LCD display offers multiple functions, including zero reset, backlight, power on / off, pressure unit selection, and low voltage alarms. Easy to operate and install, the display can be rotated 330°, allowing operators to read measurements from different angles conveniently. Units are supplied with a rubber shroud to provide shock resistance and can measure gas, liquid, oil, and other media (provided they are not corrosive to stainless steel).
Free monitoring and datalogging app available in the iOS App Store and Google Play store. Configuration parameters include pressure value display, acquisition modification, zero reset operation, start/stop logging, and export of CSV test files. Watchlog Bluetooth Digital Pressure Gauges are suitable for portable pressure measurement, equipment matching, calibration equipment, and other pressure measurement fields.
Technical Specifications
Range | Negative/compound pressure Low pressure (on request) Medium pressure High Pressure |
Vacuum to 1 & 16 bar 0…0.1, 0.4 & 0.6 bar 0…60, 160 & 250 bar 0…400, 700 & 1000 bar |
---|---|---|
Overload Capacity | 200% of FS for all ranges up to 400 bar 150% of FS for 700 bar range 120% of FS for 1000 bar range |
|
Accuracy | 0.2% FS | |
Operating Temperature | -20…65°C | |
Power supply voltage | 3V (2x AA batteries) | |
Pressure unit | MPa, bar. kgf, mH20, PSI, kPa, mmHg, mBAR, mmH20, Pa,inWC | |
Protection level | IP54 |
Ordering code
WLB-DPG-XXXX
Pressure range | *Replace XXXX with |
---|---|
-1 to +1 bar | V001 |
-1 to +16 bar | V016 |
0 to 60 bar | 0060 |
0 to 160 bar | 0160 |
0 to 250 bar | 0250 |
0 to 400 bar | 0400 |
0 to 700 bar | 0700 |
0 to 1000 bar | 1000 |
Additional information
Model | WLB-DPG-V001, WLB-DPG-V016, WLB-DPG-0060, WLB-DPG-0160, WLB-DPG-0250, WLB-DPG-0400, WLB-DPG-0700, WLB-DPG-1000 |
---|
