Description

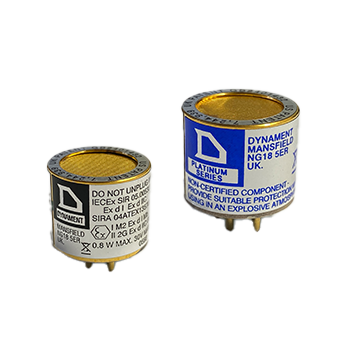

Hydrocarbon Infrared Gas Sensors – Dynament Platinum Series

hydrocarbon infrared sensors that measure methane gas over a range from 0-100% and propane gas over a range of 0-2%. The sensors are designed with non-dispersive infrared technology and respond to hydrocarbon gases, including methane and propane.

The Platinum series sensors contain all the necessary optics, electronics and firmware to provide a linearized, temperature-compensated output. Within the Platinum series are low-power options and dual-gas, high resolution methane / carbon dioxide sensor that provides the capability to simultaneously monitor methane and carbon dioxide in a single sensor package, consuming the power of a single infrared sensor.

Sensor ranges:

• Low-range CH₄ 0-5% volume
• High-range CH₄ 0-100% volume
• Low-range C₃H₈ 0-2% volume

• Plug-and-Play functionality: Contains all the necessary optics, electronics and firmware to provide a linearized, temperature-compensated output for both methane and propane, expediting time to market
• Wide operating temperature range of -20 to +50 deg. C. Extended temperature range of -40 to +75 deg. C available
• Four power options available: High Power – 420mW, Regular Power – 240mW, Low Power – 45mW, Low Power 2 24mW
• High resolution infrared sensor measures methane from 0 to 100% volume with a resolution of 0.01 % for 0-5% methane and 0.1% for 5-100% volume
• Dual methane / carbon dioxide sensor available
• Infrared NDIR Sensor
