Description

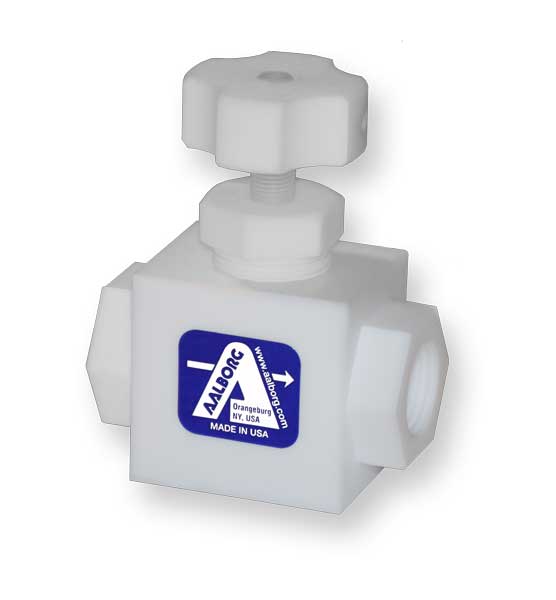

VT6 PTFE needle valve 6mm orifice

PTFE needle valves are designed for laboratory and industrial applications for regulating corrosive gases and liquids or for high purity service. They may also be used as shut off valves. Fluids contact only PTFE and PCTFE materials. Bushings are made of 316 stainless steel. Valve spindles are made of rigid PCTFE to minimize the undesirable material “creeping” normally associated with PTFE.

Design Features

• Fluids contact PTFE and PCTFE only
• One PTFE o-ring
• Simplicity, only six components

Specifications:

• MAXIMUM OPERATING PRESSURE 75 psig (517 kPa)
• MAXIMUM OPERATING TEMPERATURE 150°F (65°C)
• ORIFICE SIZE 6.0 mm (0.250″) diameter
• FLUID CONTACTING MATERIALS Body and o-ring-PTFE. Valve spindle-PCTFE
• NON-FLUID CONTACTING MATERIALS Bushings 316 stainless steel.Mounting Nut and Adjusting Knob Delrin.
