Description

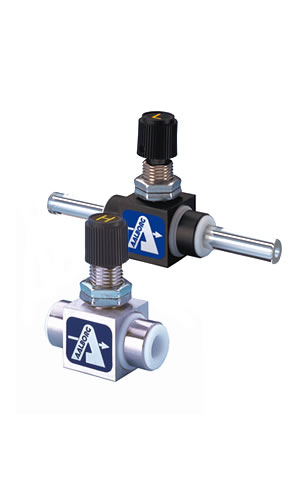

VT PTFE needle valves

These compact and reliable PTFE needle valves are designed for laboratory and industrial applications for regulating corrosive gases and liquids or for high purity service. They may also be used as shut off valves. Pliant PTFE bodies of the valves are reinforced by structurally rigid metallic shells. Fluids contact only PTFE and PEEK materials. Shells are made of anodized aluminum or type 316 stainless steel and bushings are made of plated brass or 316 stainless steel. Where externally corrosive conditions exist stainless steel is recommended.

Design Features

• fluids in contact with PTFE only
• structurally rigid metal shell.
• one PTFE o-ring
• simplicity – only seven components.
• up to 55 SLPM (air) or 2.8 LPM (water)

Specifications:

• MAXIMUM OPERATING PRESSURE 75 psig (517 kPa)
• MAXIMUM OPERATING TEMPERATURE 150°F (65°C)
• FLUID CONTACTING MATERIALS PTFE (body and o-ring); PEEK (valve spindle)
• NON-FLUID CONTACTING MATERIALS shell – aluminum (black anodized) or 316 stainless steel; bushing plated brass or 316 stainless steel; adjusting knob – phenolic.
• ORIFICE SIZE 0.125 inch diameter (3.175 mm)
