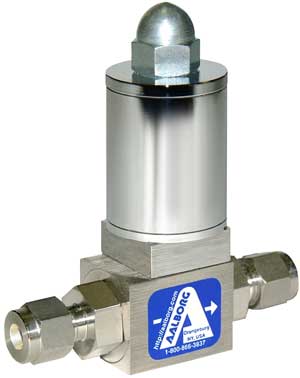

Aalborg PSV proportional solenoid valve
RM 0.00
Description
PSV proportional solenoid valve
PSV Proportionating Electromagnetic Valves are designed to respond to variable power inputs to regulate the flow of liquids and gases proportionately. For added safety PSV valves are normally closed (NC) when deenergized. They can also serve as “ON-OFF” valves.
Design Features
- leak integrity 1 x 10-9 smL/sec of helium
- rigid metallic construction
- for use with gases or liquids
- maximum pressure of 1000 psig (68.9 bars)
Specifications:
| POWER INPUT 0 to 30 Vdc |
| MAXIMUM POWER REQUIRED 400 mA |
| TYPE OF OPERATION normally closed (NC) when deenergized |
| CONNECTIONS 1/4 inch compression fittings; optional 1/8 inch and 3/8 inch |
| DIMENSIONS 3.45 inch (87.6 mm) high x 3.25 inch (82.6 mm) long (including compression fittings) x 1.00 inch (25.4 mm) deep |
| MATERIALS IN FLUID CONTACT Types 316 and 416 stainless steel, Viton® o-rings; optional Buna-N, PTFE/Kalrez®, EPR |
| MAXIMUM PRESSURE 1000 psig (68.9 bars) |
| MAXIMUM DIFFERENTIAL PRESSURE 50 psid (345 kPa) |
| LEAK INTEGRITY 1 x 10-9 smL/sec Helium; individually tested |
| MAXIMUM TEMPERATURE (TYPICAL) 174°F (79°C) inside, 130°F (54°C) outside surface at 24 Vdc |
