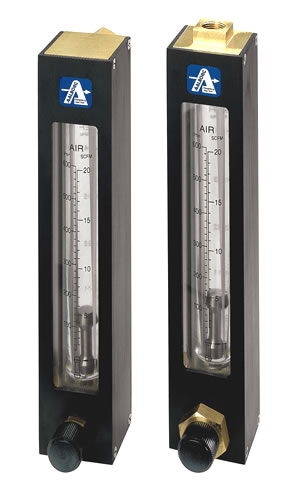

Aalborg model V medium range flow meters
RM 0.00
Description
model V medium range flow meters
Incorporating traditional rotameter precision glass technology, these rugged brass and stainless steel variable area flow meters offer accurate and economical solutions to medium flow range measurements. V meters are designed with unique rotatable scales of dual air-water direct reading graduations showing SCFM and SLPM (air), as well as GPM and LPM (water) markings.
Features
- rigid compact construction
- dual rotatable direct reading scales for air and water
- graduations reflect both metric and English systems
- vertical in-line or panel mount versions available
- flow ranges from 4 to 20 LPM water and 140 to 900 SLPM air
Specifications:
| SCALES rotatable direct reading air (SCFM-SLPM) and water (GPM-LPM) |
| STANDARD ACCURACY ±5% FS |
| MAXIMUM OPERATING PRESSURE 150 psig at 200°F (10.3 bars at 93°C) |
| MAXIMUM OPERATING TEMPERATURE 250°F (121°C) |
Materials:
| FLOW TUBES heavy walled precision formed borosilicate glass |
| FLOATS 316 stainless steel |
| TUBE SHIELD polycarbonate |
| WETTED PARTS brass or 316 stainless steel |
| SEALS Viton® o-rings standard; optional Buna-N, PTFE/Kalrez®, EPR |
| CONNECTIONS 3/8 inch NPT female in line or horizontal rear |
| VITON® and KALREZ® are registered trademarks of DuPont Dow Elastomers |
