Aalborg Model P Single Flow Tube Meters
Description
Model P single flow tube meters

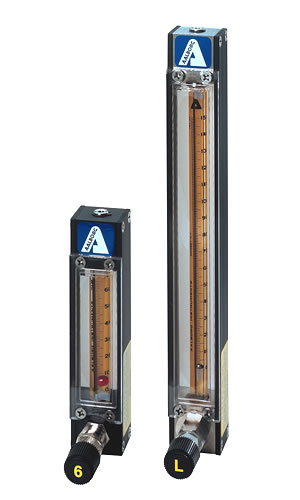

Designed for low flowrates, the model P flowmeter is a precision instrument embodying the inherent simplicity, versatility and economy of the classical variable area meter. It is particularly suitable for metering carrier gases in chromatography, indicating and controlling gases in manufacturing processes, liquid and gas measurement in laboratories, pilot plants, flow and level indicating, etc. 150 mm Meter with CV™ Valve. Shipped completely assembled, flow meters include standard mounting fittings in a choice of materials, side plates, thick protective magnifying front shield and back plate, optional built-in control valve, and flow tubes selected from the Flow Capacities tables.
Features
- rib-guided or fluted metering tubes facilitate stable and accurate readings
- magnifier lens in front shield to enhance reading resolution
- interchangeability of flowtubes and floats
- ease of installation and exchange of flow tubes
- “non-rotating” adapter feature – glass flow tubes are prevented from turning during the tightening phase of the assembly procedure
- OPTIGRAD™ scales minimize parallax and eye fatigue
- chemical compatibility
- simple means of panel mounting
Specifications:
| STANDARD ACCURACY ±2% FS (mm scales – except 032/042 flow tubes); ±5% FS (direct reading scales and 032/042 flow tubes) |
| CALIBRATED ACCURACY ±1% FS |
| REPEATABILITY ±0.25% FS |
| USEFUL FLOW RANGE 10:1 minimum with one float and better than 20:1 with combination of two floats installed in meters |
| MAXIMUM OPERATING PRESSURE 200 psig (13.8 bars) |
| MAXIMUM OPERATING TEMPERATURE 250°F (121°C) |
Materials:
| FLOW TUBES heavy walled borosilicate glass |
| FLOATS glass, sapphire, 316 stainless steel, carboloy and tantalum |
| SIDE PANELS aluminum, black anodized |
| FRONT SHIELD Lexan® with longitudinal magnifier lens for enhanced reading resolution |
| BACK PLATE 1/8 inch thick white acrylics |
| O-RING and PACKING Buna-n o-rings standard in aluminum and brass models; Viton® o-rings standard in stainless steel models; optional Viton®, PTFE/Kalrez®, EPR |
| CONNECTIONS 1/8 inch NPT female inlet and outlet connections; optional 1/4 inch FNPT, hose and compression fittings are available |
| VITON® and KALREZ® are registered trademarks of DuPont Dow Elastomers |
