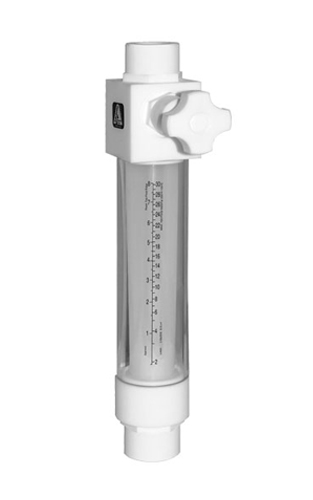

Aalborg model F PTFE in-line flow meters
RM 0.00
Description
model F PTFE in-line flow meters
Made entirely of PTFE and PCTFE, the model F flow meter is excellent for high-purity applications or use with corrosive liquids. Units are available with a standard valve to monitor and control flow or without a valve to just monitor flow.
Features
- chemically inert components
- removable protective shield
- individually leak tested
- vertical in-line
- flow ranges from 125 mLPM to 45 LPM water
Specifications:
| SCALES 0 to 10 markings |
| STANDARD ACCURACY ±5% FS |
| MAXIMUM OPERATING PRESSURE 100 psig (6.7 bars) |
| MAXIMUM OPERATING TEMPERATURE 250°F (121°C) |
| LEAK INTEGRITY individually leak tested and certified to a rating of 1 x 10-7 sccs of helium |
Materials:
| FLOW TUBES FEP |
| FLOATS PTFE |
| TUBE SHIELD polycarbonate |
| COMPOSITION PTFE end fittings, PCTFE guide rods |
| CONNECTIONS 1/4 inch FNPT to 3/4 inch FNPT based on model selected |
